95% Extraction Efficiency Essential Oil Plant Extraction Equipment with TOPTION PLC Control

Brand Name : TOPTION

Heating Method : Magnetic Stirring

Control System : PLC

Certifications : CE, ISO

Extraction Efficiency : 95%

Capacity : 500ml

Material : Stainless Steel

Contact Now

Products Description

Essential oil extracting machine uses distillation technology and chemical separation, which can extract plant components efficiently by steam distillation, and have a good effect in collecting essential oil from plants, flowers, leaves, and wood, such as rose, lavender, eucalyptus leaves, lemongrass citronella, sandalwood, etc.

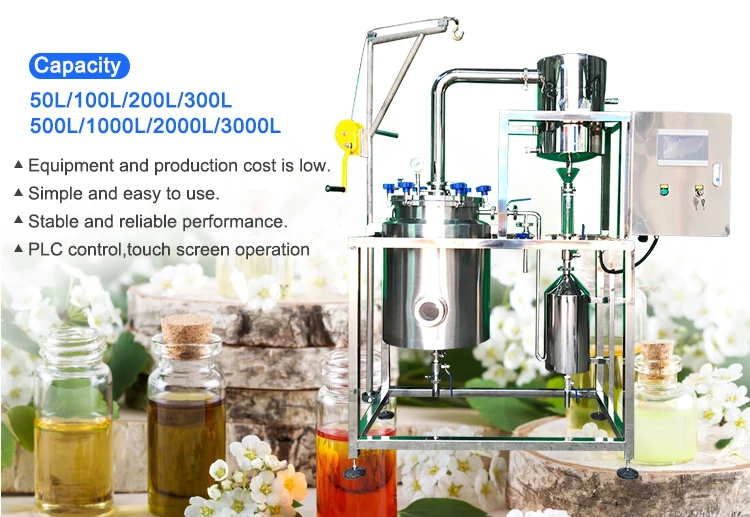

95% Extraction Efficiency Essential Oil Plant Extraction Equipment with TOPTION PLC Control

Volume	50L	100L	200L	300L
Voltage	380V,50HZ (It can also be three-phase 480V, less than 16KW and below, can be three-phase 220V)
Power (Kw)	7.5	12	16	24
Jacketed layer pressure (Mpa)	0.3
Pressure in tank (Mpa)	0.09
Extraction temperature (Celsius)	≤100
Heating area (m2)	0.72	0.98	1.38	1.65
Lifting method	Manual lifting
Control System	PLC control, touch screen operation
Cooling Tower	20T		30T

Function

Product details

1.Stainless steel extraction basket, corrosion resistant & easy to clean

2.Crane system to ensure easier operation and less labor, automatic lifting is optional.

3. Automatic control, operation is simple and flexible, and one person can easily complete the entire production.

4.Lab grade glass pipeline diameter < 20mm, special-structured oil-water separator is used to facilitate the separation and collection of essential oils.

5.The lid of extraction tank is quick-opening design, easy to open & close lock.

6.Ball valve design, continuous operation 7.Lab - pilot - industry customization with greatest flexibility

Production process

1.Charging plant materials + water into essential oil extracting tank.

2. By steam distillation or water distillation, the steam passes through plant material and vapourises oil.

3.Mixtures of steam and oil vapors go into condenser ( chilling unit ).

4.After cooling, mixture of steam and oil vapours formed.

5. Separation of oil and water by separator.

6. Achieve essential oil.

7.Dregs discharging.

Certificate and exhibition
